Luc has a spare Buccaneer seat, and a Mirage V seat also.
|Lower Left section showing occupant weight dial|

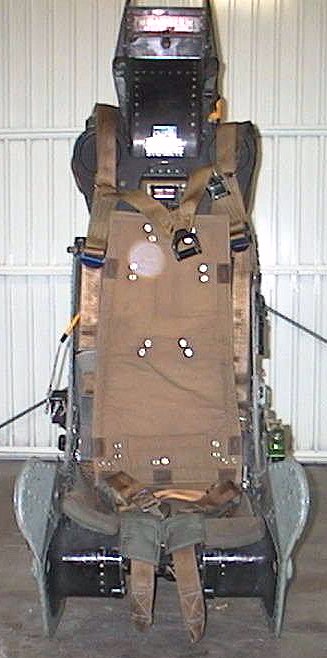

|Front View Note the parachute backing area|
|Lower right showing the seat portion |
of the personnel equipment connector
|Lower left showing the connector for|
rocket tilt control. This is used to tilt the rocket based on the dialed in weight of

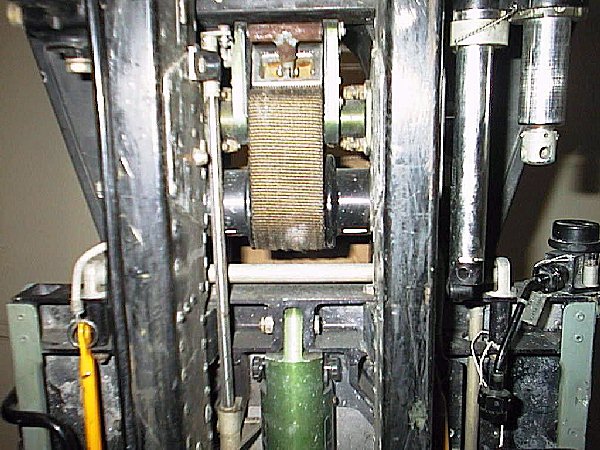

|Rear view showing the back of the inertia|
reel harness assembly. Note the TRM has been actuated and both the timer and restraint
release rod are extended in this photo, as is the trip rod from the drogue gun on the left.
the drogue gun is not present, and the rod is suspended inverted by the lower attach point.
The vertical metal rod on the inside of the left main beam is the inertia reel release rod,
which is in the released position due to the TRM restraint release rod depressing the release
lever (just visible as a small dark rectangle under the TRM rod alongside the outside of the
|Rear of the seat showing the seat pan |
height adjusting motor (green unit between the main beam assembly) as well as some of
the plumbing details. Also visible are both the DGU and TRM yellow trip rods dangling.
